How to Adjust Road Bike Rim Brakes: A Complete Step-by-Step Guide

The sensation of descending a winding alpine pass on a classic road bike is one of cycling's greatest joys. The wind in your face, the hum of the tires, and the connection to the machine are unparalleled. However, this exhilarating experience quickly turns terrifying if you lack confidence in your ability to stop. Whether you are riding a modern carbon fiber machine or a beautifully restored steel frame adorned with one of our classic era team jerseys, the principles of braking remain the same: friction, leverage, and precise adjustment.

For the discerning cyclist who appreciates the heritage of the sport, maintaining your equipment is as important as looking the part. Just as you wouldn't wear a meticulously crafted Peugeot cycling jersey without taking pride in your appearance, you shouldn't ride a bike with poorly adjusted brakes. This comprehensive guide will walk you through the meticulous process of adjusting road bike rim brakes—specifically dual-pivot and single-pivot calipers—to achieve maximum stopping power, perfect modulation, and a silent, confident ride.

Understanding the Anatomy of a Caliper Brake

Before diving into the adjustment process, it is essential to understand the components you will be working with. Caliper rim brakes, the standard on road bikes for decades, operate on a simple yet highly effective mechanical principle. When you pull the brake lever, a steel inner cable is drawn through a stationary outer housing. This action pulls the brake arms together, forcing the brake pads against the braking surface of the rim.

The primary components include:

• Brake Caliper: The main body of the brake, consisting of the arms, pivot points, and a central mounting bolt. Modern road bikes typically use dual-pivot calipers, which offer increased mechanical advantage and stopping power compared to older single-pivot designs.
• Brake Pads (Shoes): The rubber or synthetic compound blocks that contact the rim. These are held in place by metal "shoes" or cartridges.
• Cable and Housing: The lifeline of the brake system. The inner wire transmits the force from the lever, while the outer housing provides the necessary resistance.
• Barrel Adjuster: A threaded hollow bolt located where the cable housing enters the caliper. Turning it alters the effective length of the cable housing, allowing for fine-tuning of cable tension.
• Quick Release Lever: A small lever on the caliper that opens the brake arms wider, allowing the inflated tire to pass between the brake pads when removing or installing a wheel.

Step 1: Preparation and Inspection

Excellent braking performance begins with a clean and well-maintained system. Attempting to adjust brakes over a layer of grime is a recipe for frustration.

Clean the Rims and Pads

Over time, road dirt, oil, and worn rubber accumulate on the rim's braking surface and the brake pads. This creates a slick barrier that drastically reduces friction.

"Cleaning your wheel rims regularly with a specific (oil-free) disc brake degreaser or isopropyl alcohol is a good way to avoid squealing brakes and improve power."

Take a clean rag, apply isopropyl alcohol, and vigorously scrub the braking track on both sides of the rim until the rag comes away clean. Next, inspect the brake pads. If they have a shiny, glazed appearance, lightly sand the surface with fine-grit sandpaper or a file to expose fresh rubber. Pick out any tiny shards of aluminum or debris embedded in the pads using a sharp pick; these metal flakes will score your rims and degrade braking performance.

Inspect Cables and Housing

The most common culprit for stiff, unresponsive brakes is degraded cables and housing. If your brake levers feel sluggish or fail to snap back crisply, it is likely time for a replacement. Inspect the inner cable for fraying or rust, particularly where it clamps to the caliper. Check the housing for kinks, splits, or rust emerging from the ends. If the cables are in good condition, a drop of light bicycle oil applied where the inner wire enters the housing can improve smoothness.

Step 2: Centering the Caliper

A properly adjusted brake must be perfectly centered over the wheel. If the caliper is off-center, one pad will constantly rub against the rim, causing drag, while the other pad will have to travel further to make contact, resulting in a spongy lever feel.

First, ensure your wheel is fully seated in the dropouts and the quick-release skewer is properly tightened. A misaligned wheel will make it impossible to center the brakes accurately.

Most modern dual-pivot calipers feature a small centering screw, usually located on the top or side of the caliper arm.

1. Squeeze the brake lever firmly a few times to settle the housing and caliper.
2. Look straight down at the brake pads and the rim. Observe which pad is closer to the rim.
3. Using a small Allen key (typically 3mm) or a Phillips screwdriver, turn the centering screw. Turning it clockwise usually moves the entire caliper in one direction, while counter-clockwise moves it the other way.
4. Adjust the screw until both pads hit the rim simultaneously when the lever is squeezed.

For older single-pivot brakes, or if the centering screw does not provide enough adjustment, you may need to loosen the main mounting nut on the back of the fork or brake bridge. Hold the caliper centered by hand, and securely retighten the mounting nut.

Step 3: Setting the Cable Tension

The cable tension determines how far you must pull the brake lever before the pads engage the rim. For maximum stopping power and control, the brakes should engage firmly when the lever is pulled roughly one-third to halfway toward the handlebar. This allows you to apply maximum force without the lever bottoming out against the bar.

1. Reset the Barrel Adjuster: Turn the barrel adjuster on the brake caliper clockwise until it is almost fully screwed in. Leave one or two threads exposed. This gives you maximum room to tighten the cable later as the pads wear down.
2. Loosen the Pinch Bolt: Using a 5mm Allen key, loosen the cable pinch bolt on the brake caliper arm to free the inner cable.
3. Set the Pad Clearance: Squeeze the brake caliper arms together with one hand until the pads are resting against the rim. Then, let them open slightly so there is about 1.5mm to 2mm of clearance on each side.
4. Pull and Clamp: With your other hand, pull the inner cable taut. Ensure the cable housing is fully seated in the brake lever and the barrel adjuster. While holding the cable tight, firmly tighten the pinch bolt. (The recommended torque for most pinch bolts is 6-8 Nm).
5. Test and Refine: Squeeze the brake lever hard several times. This seats the cable and housing. If the lever pulls too close to the handlebar, loosen the pinch bolt, pull a bit more cable through, and retighten. If the brakes rub the rim without pulling the lever, the cable is too tight; let a tiny amount of slack out.

Step 4: Aligning the Brake Pads

Pad alignment is arguably the most critical step for achieving maximum stopping power and preventing damage to your tires. The brake pad must strike the flat braking surface of the rim perfectly.

1. Loosen the Pad Bolt: Use an Allen key (usually 4mm or 5mm) to slightly loosen the bolt holding the brake pad to the caliper arm. The pad should be able to move freely in all directions.
2. Vertical Alignment: Squeeze the brake lever gently so the pad touches the rim. Slide the pad up or down in its slot until it is perfectly centered on the rim's braking track. Crucial Warning: The pad must not hang off the bottom edge of the rim, or it will wear unevenly and eventually slip under the rim, locking the wheel. More importantly, the pad must not touch the tire. If a brake pad rubs the tire sidewall, it will quickly wear through the casing, causing a catastrophic blowout.
3. Horizontal Alignment: Ensure the pad is parallel to the rim. The top edge of the pad should align with the curve of the rim.

Step 5: The Secret to Silent Braking: "Toe-In"

If your brakes emit an ear-piercing squeal when applied, they likely lack proper "toe-in." When a brake pad hits the rim perfectly flat, the rotational force of the wheel grabs the pad and twists the brake arm slightly. This causes the back of the pad to dig in and the front to lift off, creating a rapid stick-slip vibration that manifests as a loud squeal.

Toeing-in the pads means angling them so the front edge (the end pointing toward the front of the bike) strikes the rim slightly before the rear edge.

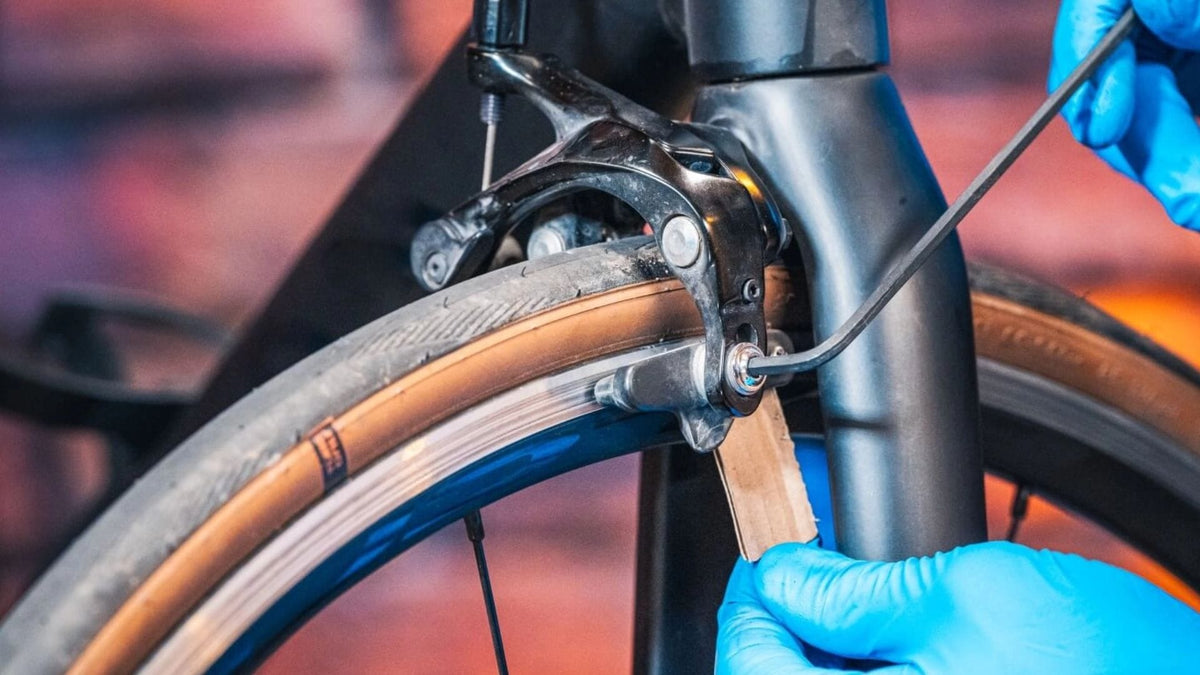

1. The Business Card Trick: Loosen the brake pad bolt slightly. Place a business card, a folded piece of paper, or a specialized brake alignment tool between the rear half of the brake pad and the rim.
2. Squeeze and Tighten: Squeeze the brake lever firmly. The pad will press flat against the rim at the front, while the business card creates a small gap (about 1mm) at the rear.
3. Lock it Down: While maintaining pressure on the brake lever, securely tighten the brake pad bolt. Release the lever and remove the card.
4. Repeat: Perform this process for all four brake pads.

When you apply the brakes now, the slight angle compensates for the twisting force of the caliper arms, resulting in smooth, silent, and powerful braking.

Brake Pad Compounds: Choosing the Right Rubber

Just as a 1980s Legends Team jersey represents an era of specific technical advancements in cycling apparel, brake pad compounds have evolved significantly. The type of pad you use drastically affects your stopping power.

If your brakes feel weak despite proper adjustment, upgrading to a premium aftermarket pad (like the legendary Kool-Stop Salmon pads) is the most cost-effective way to boost performance.

Final Checks and the Test Ride

After completing all adjustments, perform a final safety check before hitting the road.

1. The Squeeze Test: Squeeze both brake levers as hard as you can. The cables should not slip, the housing should not pop out of the stops, and the levers should not touch the handlebars.
2. The Spin Test: Lift the front of the bike and spin the wheel. It should spin freely without any scraping or rubbing sounds. Repeat for the rear wheel.
3. The Drop Test: Lift the bike a few inches off the ground and drop it. Listen for any rattles that might indicate a loose mounting bolt.

Finally, take the bike for a short test ride in a safe, traffic-free area. Accelerate to a moderate speed and apply the brakes firmly. They should engage smoothly, predictably, and with enough power to lift the rear wheel slightly if you shift your weight forward. If the brakes feel spongy, you may need to increase cable tension via the barrel adjuster. If they squeal, re-check your toe-in alignment.

Conclusion

Mastering the art of brake adjustment is a rite of passage for any dedicated cyclist. It transforms your bicycle from a mere machine into a precise instrument that responds instantly to your commands. Taking the time to clean your rims, perfectly align your pads, dial in the cable tension, and set the correct toe-in will reward you with maximum stopping power and unwavering confidence on the steepest descents.

Cycling is about the harmony between rider, machine, and the open road. It’s a pursuit steeped in history and style. As you tune your classic steed to perfection, why not match its elegance with your attire? Explore Retrolica’s extensive collection of vintage-inspired cycling apparel. From the iconic designs of the Tour de France to the timeless style of legends like Eddy Merckx, our jerseys are crafted for those who ride with passion and appreciate the heritage of the peloton. Ride safe, stop fast, and look impeccable.

Frequently Asked Questions (FAQs)

Q: How often should I replace my road bike brake pads? A: Brake pad lifespan depends on your riding style, terrain, and weather conditions. Riding in the rain and grit will wear pads down much faster than dry, flat riding. Inspect your pads regularly. Most pads have molded wear indicator lines or grooves. When the rubber wears down to these lines, or if the pads are less than 1-2mm thick, it is time to replace them.

Q: Why do my brakes feel "spongy" even after I tighten the cable? A: A spongy lever feel is almost always caused by compression in the brake system. The most common culprit is old, worn-out brake cable housing that compresses when under tension. Replacing the inner cables and outer housing is the best fix. Another cause could be brake pads that are hitting the tire or not striking the rim flat, causing the caliper arms to flex excessively.

Q: Can I use the same brake pads for aluminum and carbon wheels? A: Absolutely not. Carbon fiber rims require specific brake pads designed to manage the high heat generated during braking and to provide friction without destroying the carbon resin. Using standard rubber pads on carbon rims will result in poor braking and can melt or delaminate the rim. Conversely, using carbon-specific pads on aluminum rims will provide very poor stopping power and wear the pads out almost instantly.

Q: What is the purpose of the barrel adjuster on the brake caliper? A: The barrel adjuster allows you to make micro-adjustments to the brake cable tension without needing tools. As your brake pads wear down, the gap between the pad and the rim increases, requiring you to pull the lever further. By turning the barrel adjuster counter-clockwise (unscrewing it), you effectively lengthen the cable housing, which pulls the inner cable tighter and moves the pads closer to the rim again.

Q: My brake caliper won't stay centered; it keeps pulling to one side. How do I fix this? A: First, ensure your wheel is perfectly seated in the dropouts. If the wheel is straight, check the brake housing. If the housing is cut too short or too long, it can push or pull against the caliper, forcing it off-center. Also, check that the main mounting nut on the back of the fork or frame is tightened securely. Finally, a drop of oil on the pivot points of the caliper can help the internal springs return the arms evenly.
